One unit fails, the other units continue to work
No restarting issue due to excessive inductive load
Parallel up to 4 units to expand system capacity
≤10ms seamless switch when the grid fails
One unit fails, the other units continue to work
No restarting issue due to excessive inductive load
Parallel up to 4 units to expand system capacity
≤10ms seamless switch when the grid fails

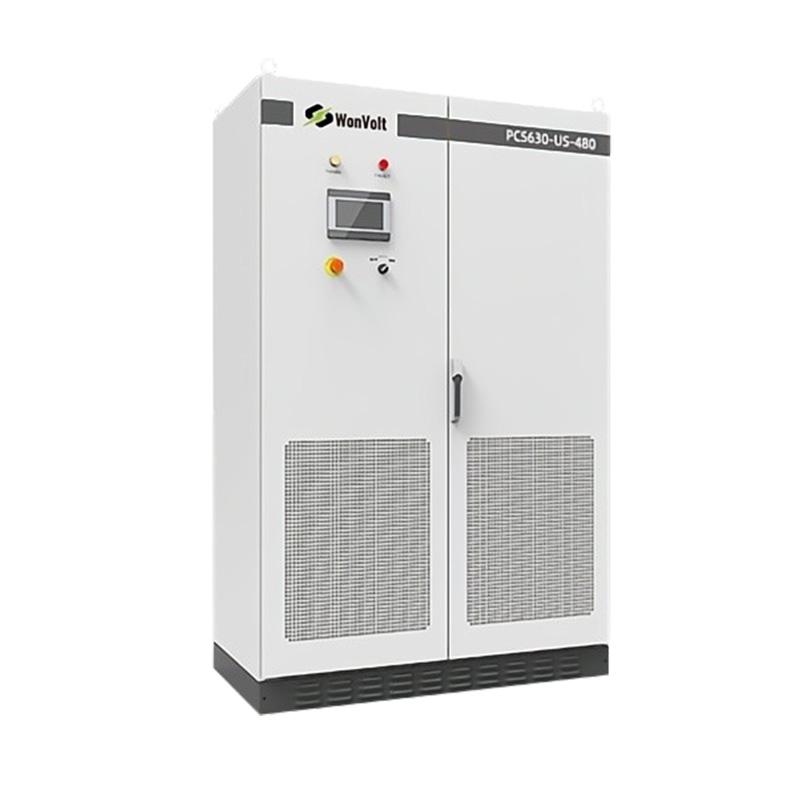

| Model | PCS100-US-480 | PCS250-US-480 | PCS500-US-480 | PCS630-US-480 | PCS1000-US-480 |
| AC(on-grid) | |||||
| Apparent Power | 100kVA | 250kVA | 500kVA | 630kVA | 1000kVA |
| Rated Power | 100kW | 250kW | 500kW | 630kW | 1000kW |
| Rated Voltage | 480V | ||||
| Rated Current | 120A | 301A | 601A | 758A | 1203A |
| Voltage Range | 432V-528V | ||||
| Rated Frequency | 50/60Hz | ||||
| Frequency Range | 45~55/55~65Hz | 47-51.5/57-61.5Hz | |||
| THDI | <3% | ||||
| PF | 0.8 lagging~0.8 leading | ||||
| AC Connection | 3/N/PE | 3/PE | |||
| AC(off-grid) | |||||
| Apparent Power | 100kVA | 250kVA | 500kVA | 630kVA | 1000kVA |
| Rated Power | 100kW | 250kW | 500kW | 630kW | 1000kW |
| Rated Voltage | 480V | ||||
| Rated Current | 120A | 301A | 601A | 758A | 1203A |
| THDU | ≤2% linear | ||||
| Rated Frequency | 50/60Hz | ||||
| Overload Capability | 110%-10mins 120%-1min | ||||
| DC(Battery and PV) | |||||
| Rated Power | 100kW | 250kW | 500kW | 630kW | 1000kW |
| Current Regulation | ±1% | ||||
| Voltage Regulatoin | ±1% | ||||
| Voltage Ripple | <3% | ||||
| Current Ripple | <2% | ||||
| Voltage Range | 500V-820V | 500V-820V | 600V-900V | 650V-900V | 700V-900V |
| Max. Charge/Dischargecurrent | 220A | 550A | 917A | 1155A | 1430A |
| General Information | |||||
| Max. Efficiency | 97.10% | 97.30% | 98.50% | 98.50% | 99.00% |
| Protection Degree | Type 1 | ||||
| Noise Emission | <65dB(A)@1m | ||||
| Operating Temperature | -25°C~+55°C | ||||
| Cooling Method | Forced-air | ||||
| Relative Humidity | 0-95% non-condensing | ||||
| Max. Altitude | 6000m(Derate Above 3000m) | ||||
| Dimension(W/H/D) | 1100/1890/850mm | 1600/2080/850mm | 1200/1900/800mm | 1510/1900/850mm | |
| Weight | 820kg | 1465kg | 870kg | 900kg | 1500kg |
| Build-in Transformer | Yes | No | |||
| Lightning Protection | Type II | ||||
| Transfer Between on/off grid | Manual(default) Automatic(optional)≤10ms |
||||
| Communication | |||||
| Display | Touch Screen | ||||
| Communication | RS485/CAN | ||||
| Certificate | UL1741,CSA-C22.2 | ||||
