One unit fails, the other units continue to work
No restarting issue due to excessive inductive load
Parallel up to 4 units to expand system capacity
≤10ms seamless switch when the grid fails
One unit fails, the other units continue to work
No restarting issue due to excessive inductive load
Parallel up to 4 units to expand system capacity
≤10ms seamless switch when the grid fails

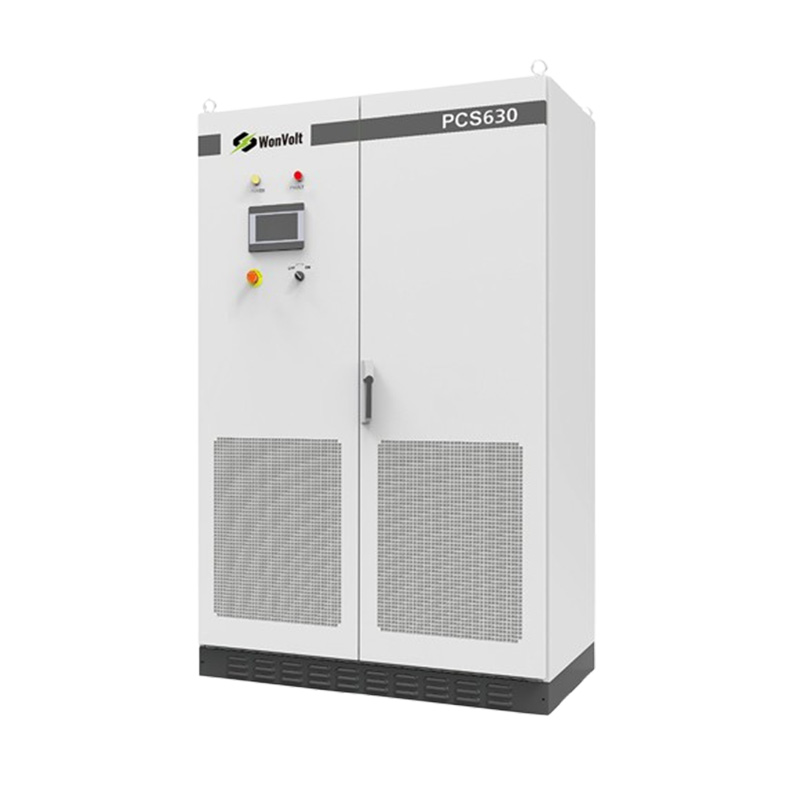

| Model | PCS100 | PCS250 | PCS500 | PCS630 |
| AC(on-grid) | ||||
| Apparent Power | 110kVA | 275kVA | 550kVA | 693kVA |
| Rated Power | 100kW | 250kW | 500kW | 630kW |
| Rated Voltage | 400V | |||
| Rated Current | 144A | 361A | 722A | 909A |
| Voltage Range | 360V-440V | |||
| Rated Frequency | 50/60Hz | |||
| Frequency Range | 45~55/55~65Hz | |||
| THDI | <3% | |||
| PF | 0.8 lagging~0.8 leading | |||
| AC Connection | 3/N/PE | |||
| Max.Rectified Power | 100kW | 250kW | 500kW | 630kW |
| AC(off-grid) | ||||
| Apparent Power | 110kVA | 275kVA | 550kVA | 693kVA |
| Rated Power | 100kW | 250kW | 500kW | 630kW |
| Rated Voltage | 400V | |||
| Rated Current | 144A | 361A | 722A | 909A |
| THDU | ≤2% linear | |||
| Rated Frequency | 50/60Hz | |||
| Overload Capability | 110%-10mins 120%-1min | |||
| Max.Rectified Power | 100kW | 250kW | 500kW | 630kW |
| DC(Battery and PV) | ||||
| Rated Power | 100kW | 250kW | 500kW | 630kW |
| Current Regulation | ±1% | |||
| Voltage Regulatoin | ±1% | |||
| Voltage Ripple | <3% | |||
| Current Ripple | <2% | |||
| Voltage Range | 500V-820V | 500V-820V | 600V-900V | 600V-900V |
| Max.Charge/Discharge Current | 220A | 550A | 917A | 1155A |
| General Information | ||||
| Max.Efficiency | 97.10% | 97.30% | 98.50% | 98.50% |
| Protection Degree | IP20 | |||
| Noise Emission | <65dB(A)@1m | |||
| Operating Temperature | -25°C~+55°C | |||
| Cooling Method | Forced-air | |||
| Relative Humidity | 0-95% non-condensing | |||
| Max.Altitude | 6000m(derate above 3000m) | |||
| Dimension(W/H/D) | 1100/1890/850mm | 1600/2080/850mm | 1200/1900/800mm | |
| Weight | 820kg | 1465kg | 870kg | 900kg |
| Build-in Transformer | Yes | No | ||
| Lightning Protection | Type II | |||
| Transfer Between on/off grid | Manual(default) Automatic(optional) ≤10ms | |||
| Communication | ||||
| Display | Touch Screen | |||
| Communication | RS485/CAN | |||
| Certificate | ||||
| CE, MEA, PEA, EN61000-6-2:2019, EN61000-6-4:2019, EN61000-6-2:2005, EN62109-1:2010, EN62109-2:2011, NRS097-2-1:2017, VDE0126,UTE-C, 15-712, EN50549-1:2019, PSE:2018-12 | ||||
