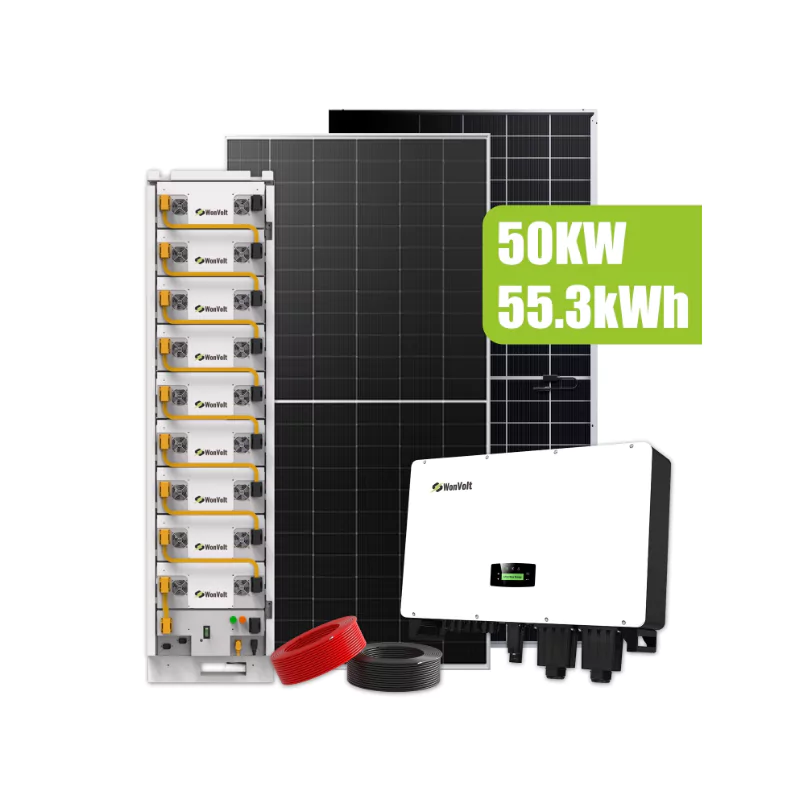

50kW solar panel with 50kW hybrid inverter and 55kWh 1C LiFePO4 battery(100kWh optional)
No restarting issue due to excessive inductive load
Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Prevent excess power overflow to the grid
50kW solar panel with 50kW hybrid inverter and 55kWh 1C LiFePO4 battery(100kWh optional)
No restarting issue due to excessive inductive load
Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Prevent excess power overflow to the grid
| WV-50KW-55KWh-1C | ||||
| Equipment | Model | Spec. | Quantity | Remark |
| Topcon Solar Panel | WV-72KUN605-H8NS | 605W | 96 | 16pcs/string, 6strings |
| Hybrid Inverter | AF50K-TH | 50KW | 1 | 3P/380-400VAC |
| Lithium Batttery | WV76120H | 9.216kWh | 6 | 76.8V/120Ah@1C |
| HV Control Box | 1KV | 1 | BAU included | |
| PV Connector | MC4 | 1.5KV | 30 | Male & Female |
| PV Cable | PV1-F | 1.5KV | 600 | 1*4mm2 |
| Remote Control | WIFI Module | 4G | 1 | Phone/PC |
| Mounting Structure | Roof/Ground | / | 1 | HDG Steel/Aluminium Alloy |
| ATS | ATS50KW | 50KW | 1 | Optional |
