High-performance PV modules For Utility Power Plants
Advanced MBB Cell Technology Delivers Superior Module Efficiency
High Bifaciality& Excellent Power Temperature Coefficient Achieves High Energy Yield
20% additional power generation from the backside of bifacial modules increases the overall energy yield.
Advanced 16BB TOPCon cell tech, industry standard PV module size, low LCOE.
N type TOPCON module, 30 years linear power output warranty.
The temperature coefficient of P-type is -0.35%/℃, Under high temperature condition, WV-66KUN series can generate 2% more power than P-type.
20% additional power generation from the backside of bifacial modules increases the overall energy yield.
Advanced 16BB TOPCon cell tech, industry standard PV module size, low LCOE.
N type TOPCON module, 30 years linear power output warranty.
The temperature coefficient of P-type is -0.35%/℃, Under high temperature condition, WV-66KUN series can generate 2% more power than P-type.
♦ High-performance PV modules For Commericail & Industrial Power Plants
♦ Advanced 16BB Cell Technology Delivers Superior Module Efficiency
♦ High Bifaciality & Excellent Power Temperature Coefficient Achieves High Energy Yield
Product Description

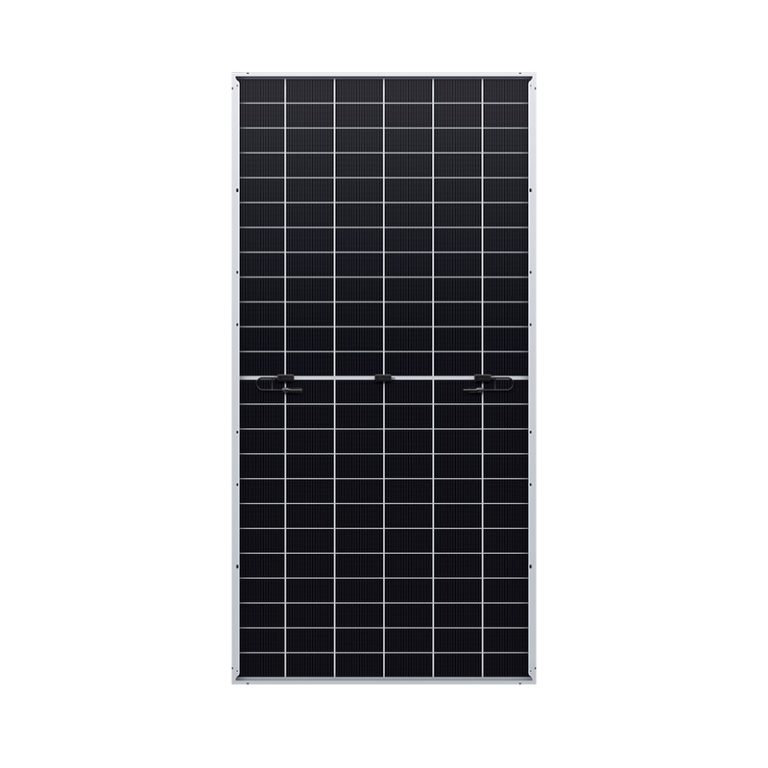

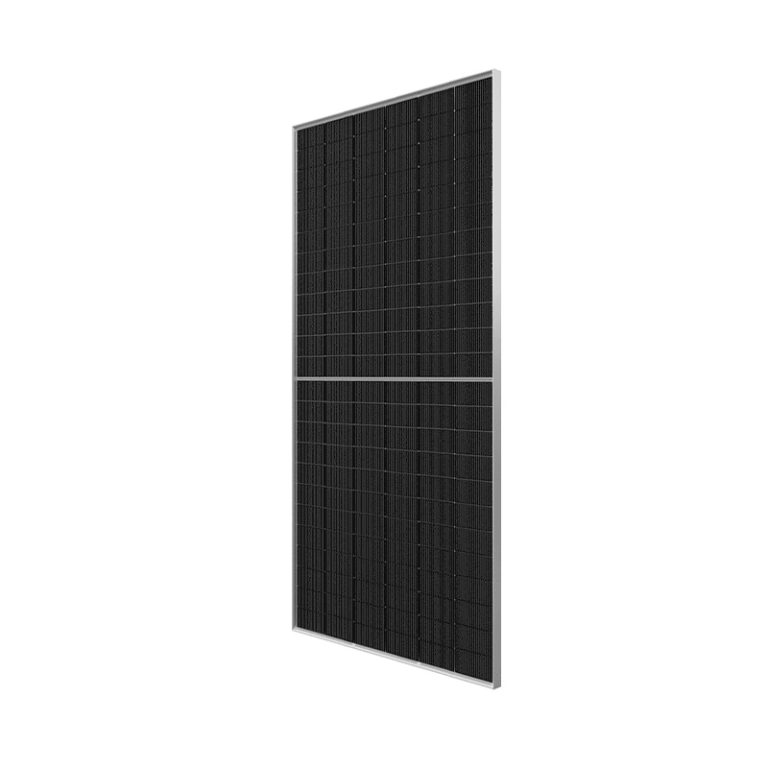

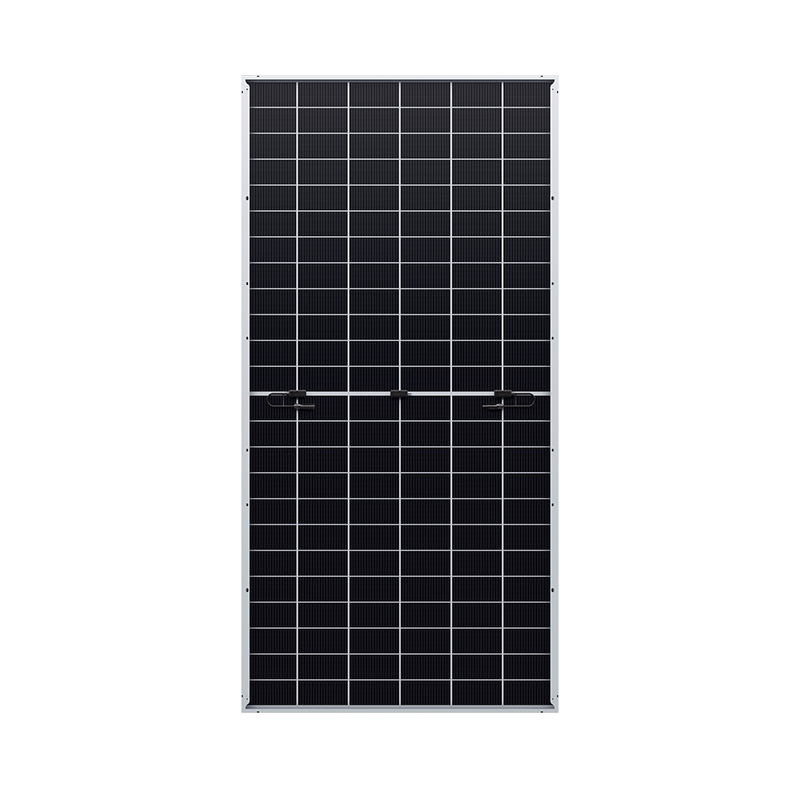

WV-72KUN Series Max. 605W
Best Choice For Commercial & Industrial Solar Power Plant
using intergrated advanced technologies
WonVolt WV-72KUN Series panel gives you higher power and lower LCOE.
Core Advantages
Solar Panel Production Line
TUV Certificate

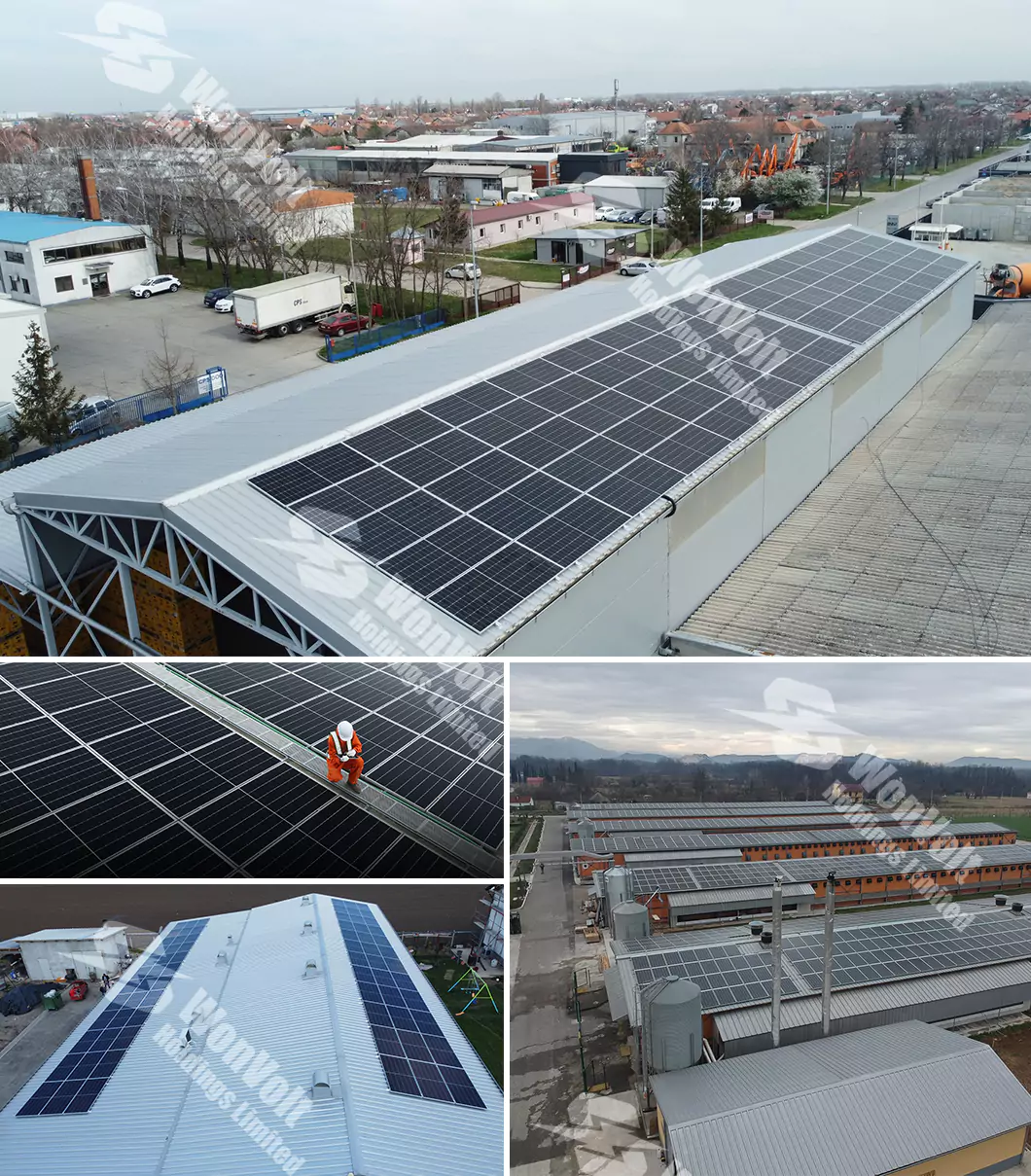

Successful Cases
Contact our team for more info.
| Cell Layout | 144(6×24) |
| Junction Box | IP68, three diodes |
| Output Cable | 4mm², +400, -200mm/±1400mm |
| Glass | Dual glass, 2.0+2.0mm heat strengthened glass |
| Frame | Anodized aluminum alloy frame |
| Weight | 31.8kg |
| Dimension | 2278×1134×30mm |
| Packaging | 36pcs per pallet/180pcs per 20’GP/720pcs per 40’HC |
| Module Type | WV-72KUN585-H8NS | WV-72KUN590-H8NS | WV-72KUN595-H8NS | WV-72KUN600-H8NS | WV-72KUN605-H8NS | |||||
| Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT |
| Maximum Power(Pmax/W) | 585 | 445.3 | 590 | 449.1 | 595 | 452.9 | 600 | 456.7 | 605 | 460.6 |
| Open Circuit Voltage(Voc/V) | 51.52 | 48.96 | 51.63 | 49.07 | 52.23 | 49.64 | 52.34 | 49.74 | 52.44 | 49.84 |
| Short Circuit Current(Isc/A) | 14.30 | 11.48 | 14.38 | 11.55 | 14.45 | 11.61 | 14.53 | 11.67 | 14.61 | 11.74 |
| Voltage at Max Power(Vmp/V) | 43.33 | 41.18 | 43.44 | 41.28 | 43.79 | 41.63 | 43.90 | 41.72 | 44.00 | 41.82 |
| Current at Max Power(Imp/A) | 13.51 | 10.82 | 13.59 | 10.89 | 13.59 | 10.88 | 13.67 | 10.95 | 13.75 | 11.02 |
| Module Efficiency(%) | 22.6 | 22.8 | 23.0 | 23.2 | 23.4 | |||||
| Front Side Maximum Static Loading | 5400Pa | |||||||
| Rear Side Maximum Static Loading | 2400Pa | |||||||
| Hailstone Test | 25mm Hailstone at the speed of 23m/s | |||||||
| Temperature Coefficient of Isc | +0.045%/℃ | ||||||
| Temperature Coefficient of Voc | -0.230%/℃ | ||||||
| Temperature Coefficient of Pmax | -0.280%/℃ | ||||||
