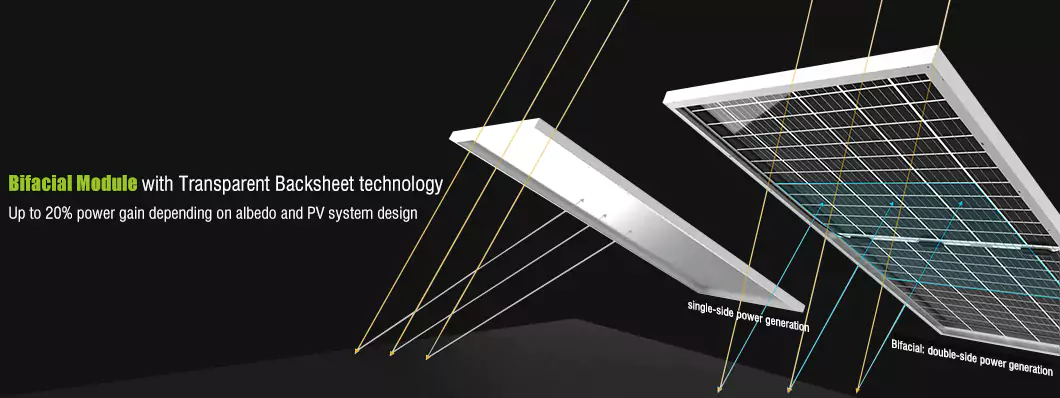

20% additional power generation from the backside of bifacial modules increases the overall energy yield.
Advanced MBB cell tech, low LCOE.

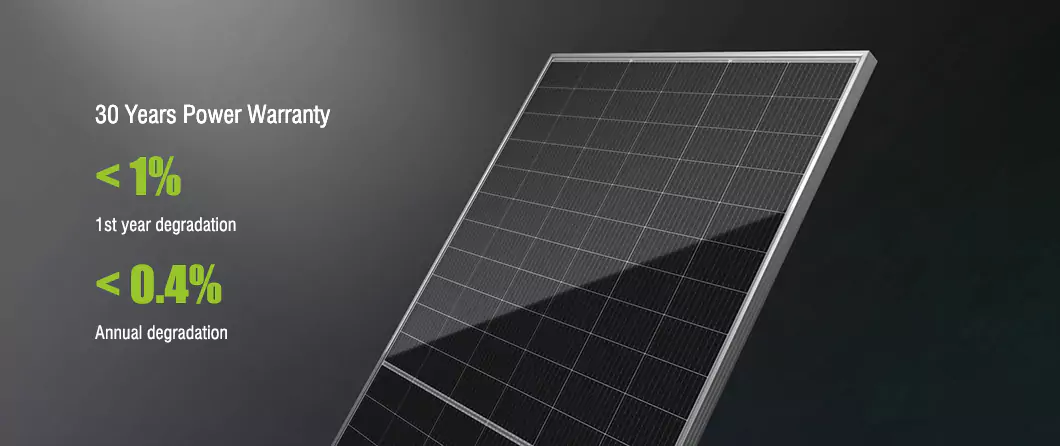

Annual Degradation less than 0.4%
30-years linear power output warranty
20% additional power generation from the backside of bifacial modules increases the overall energy yield.
Advanced MBB cell tech, low LCOE.
Annual Degradation less than 0.4%
30-years linear power output warranty
♦ High-performance PV modules For Commercial & Industrial Power Plants

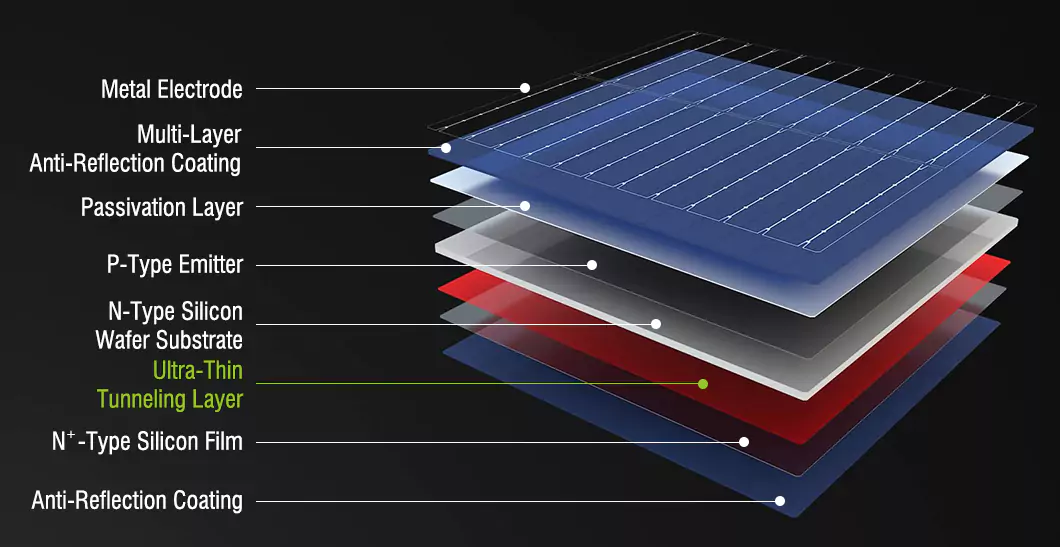

♦ Advanced 210mm Rectangular PV Cell Technology Delivers Superior Module Efficiency

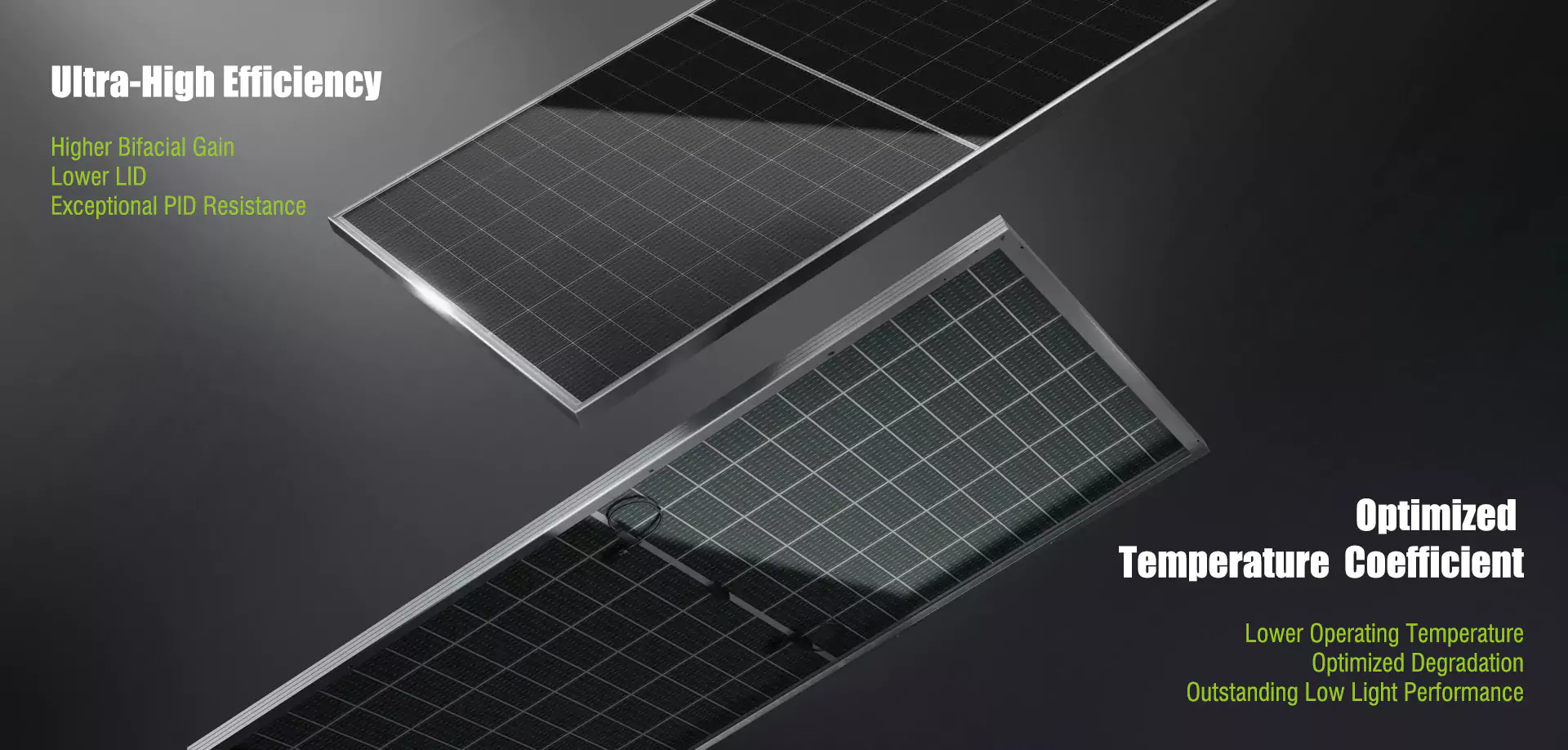

♦ High Bifaciality & Excellent Power Temperature Coefficient Achieves High Energy Yield
Product Description
WV-66KUN Series Max. 630W
Best Panel For Commercial & Industrial Power Station
using intergrated advanced technologies
WonVolt WV-66KUN Series panel gives you higher power and lower LCOE.
Core Advantages
Solar Panel Production Line
TUV Certificate
Successful Cases
♦ Welcome to contact our team for more info.
| Cell Layout | 132(6×22) |
| Junction Box | IP68, three diodes |
| Output Cable | 4mm², +400, -200mm/±1400mm |

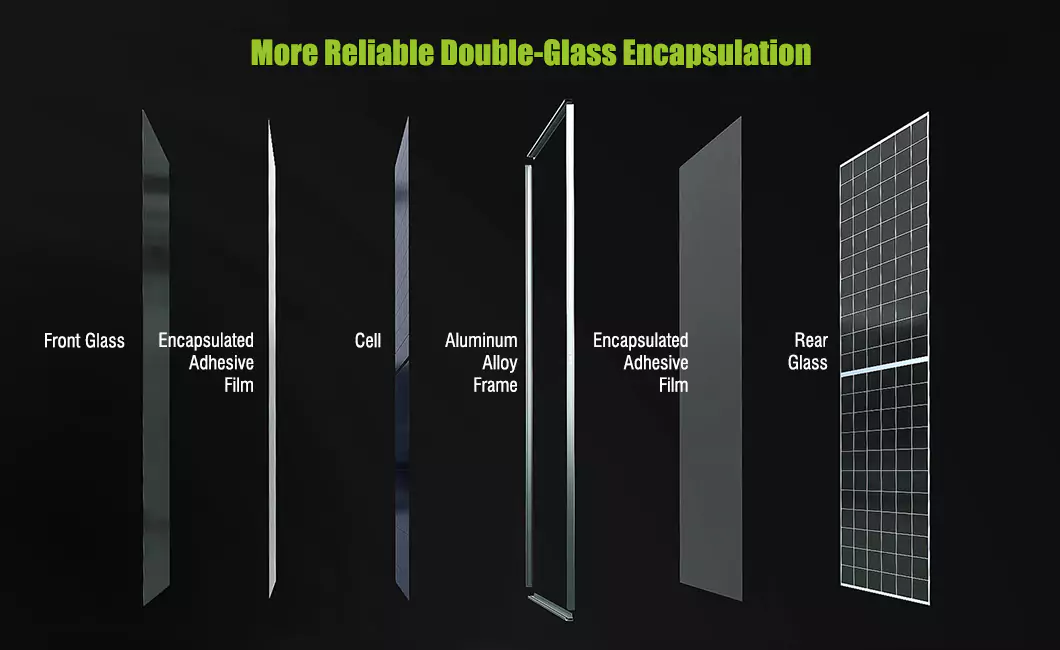

| Glass | Dual glass, 2.0+2.0mm heat strengthened glass |
| Frame | Anodized aluminum alloy frame |
| Weight | 32.5kg |

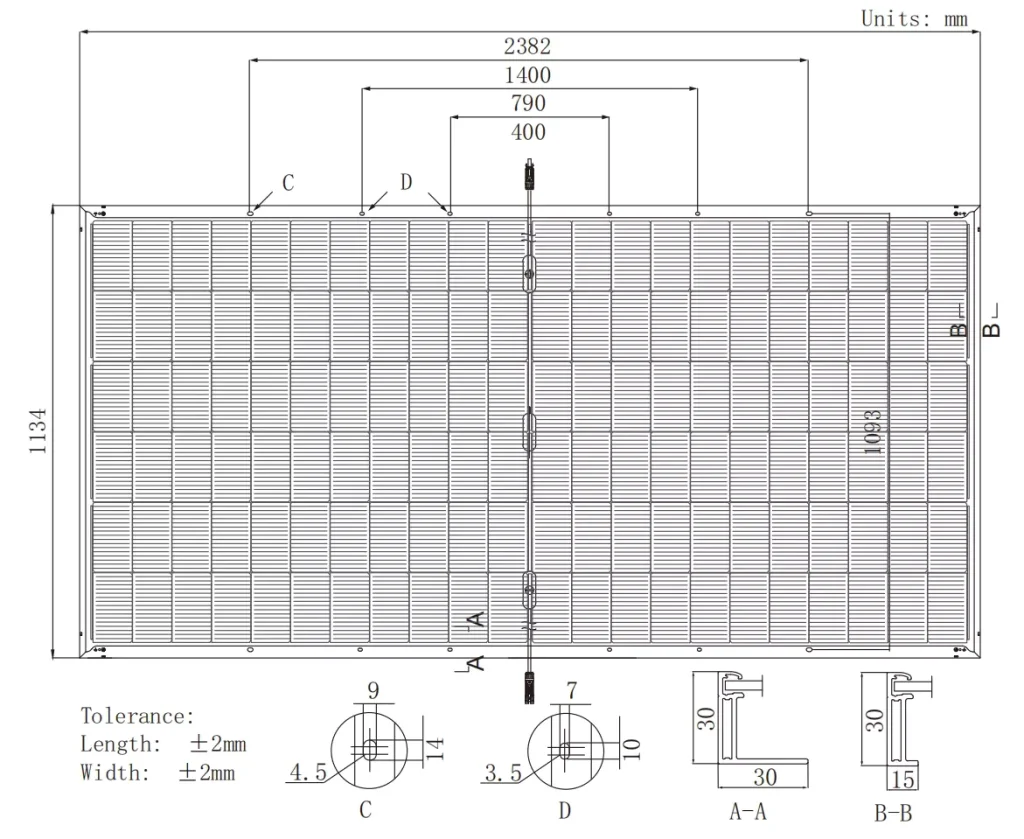

| Dimension | 2382×1134×30mm |
| Packaging | 36pcs per pallet/180pcs per 20’GP/720pcs per 40’HC |
| Module Type | WV-66KUN610-H12RS | WV-66KUN615-H12RS | WV-66KUN620-H12RS | WV-66KUN625-H12RS | WV-66KUN630-H12RS | |||||
| Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT |
| Maximum Power(Pmax/W) | 610 | 461 | 615 | 464 | 620 | 468 | 625 | 472 | 630 | 476 |
| Open Circuit Voltage(Voc/V) | 48.70 | 46.36 | 48.90 | 46.55 | 49.10 | 46.74 | 49.300 | 46.93 | 49.50 | 47.12 |
| Short Circuit Current(Isc/A) | 15.94 | 12.87 | 16.00 | 12.92 | 16.06 | 12.97 | 16.12 | 13.01 | 16.18 | 13.06 |
| Voltage at Maximum Power(Vmp/V) | 40.48 | 37.89 | 40.65 | 37.98 | 40.82 | 38.18 | 40.96 | 38.32 | 41.10 | 38.45 |
| Current at Maximum Power(Imp/A) | 15.07 | 12.17 | 15.13 | 12.22 | 15.19 | 12.26 | 15.26 | 12.32 | 15.33 | 12.38 |
| Module Efficiency(%) | 22.6 | 22.8 | 23.0 | 23.1 | 23.3 | |||||
| Front Side Maximum Static Loading | 5400Pa | |||||||
| Rear Side Maximum Static Loading | 2400Pa | |||||||
| Hailstone Test | 25mm Hailstone at the speed of 23m/s | |||||||
| Temperature Coefficient of Isc | +0.045%/℃ | ||||||
| Temperature Coefficient of Voc | -0.230%/℃ | ||||||

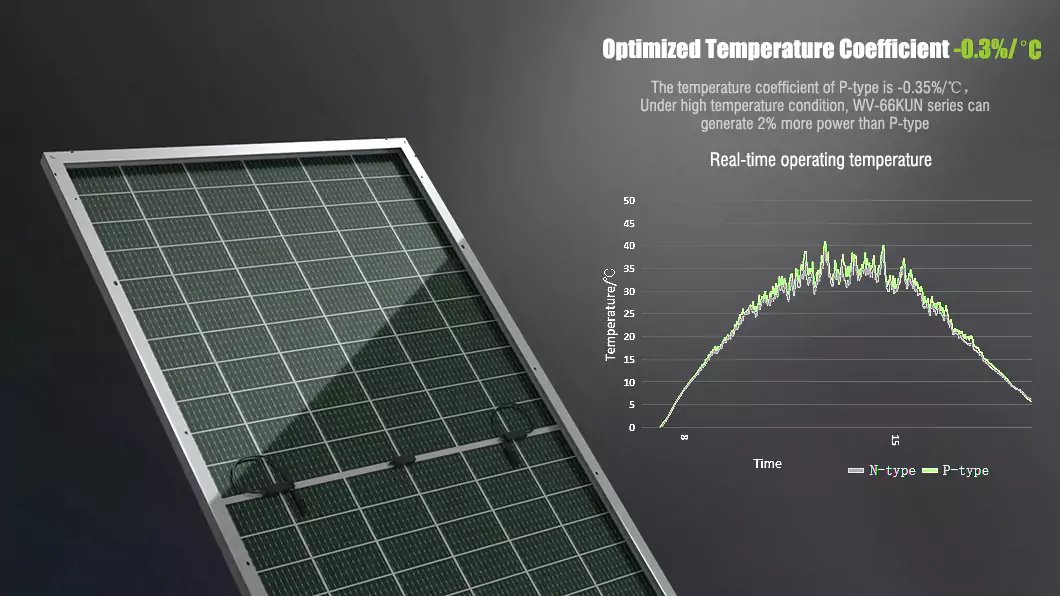

| Temperature Coefficient of Pmax | -0.280%/℃ | ||||||
