High-performance PV modules For Utility Power Plants
Advanced MBB Cell Technology Delivers Superior Module Efficiency
High Bifaciality& Excellent Power Temperature Coefficient Achieves High Energy Yield
20% additional power generation from the backside of bifacial modules increases the overall energy yield.
Advanced MBB cell tech, utility standard PV module size, low LCOE.
N type TOPCON module, 30 years linear power output warranty.
The temperature coefficient of P-type is -0.35%/℃, Under high temperature condition, WV-66KUN series can generate 2% more power than P-type.
20% additional power generation from the backside of bifacial modules increases the overall energy yield.
Advanced MBB cell tech, utility standard PV module size, low LCOE.
N type TOPCON module, 30 years linear power output warranty.
The temperature coefficient of P-type is -0.35%/℃, Under high temperature condition, WV-66KUN series can generate 2% more power than P-type.
♦ High-performance PV modules For Utility Power Plants
♦ Advanced MBB 210mm Cell Technology Delivers Superior Module Efficiency
♦ High Bifaciality & Excellent Power Temperature Coefficient Achieves High Energy Yield
Product Description

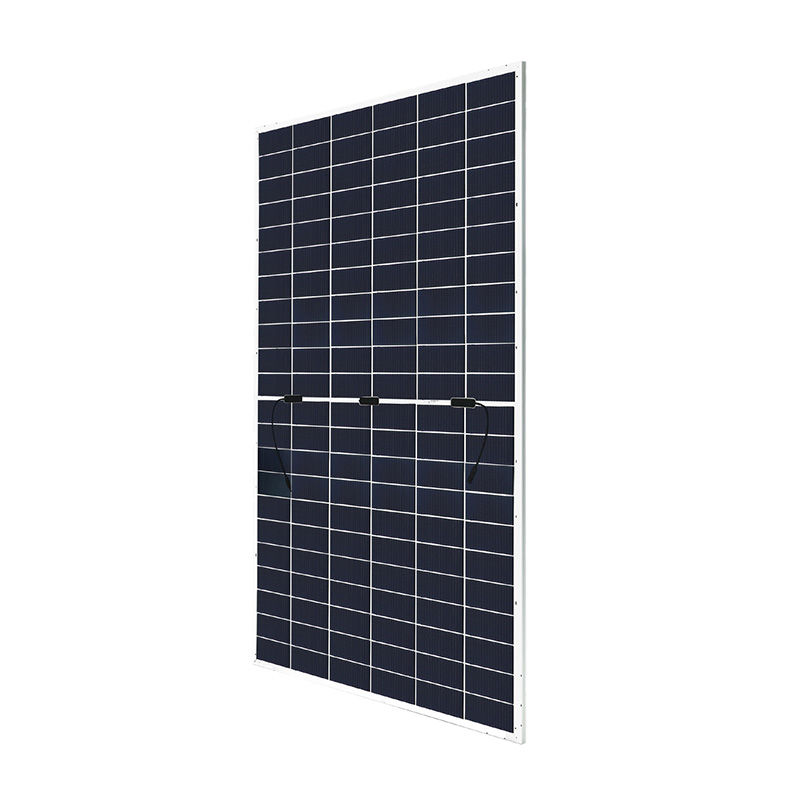

WV-66KUN Series Max. 740W
Best Panel For Utility-Scale Power Station
using intergrated advanced technologies
WonVolt WV-66KUN Series panel gives you higher power and lower LCOE.
Core Advantages
Solar Panel Production Line
TUV Certificate

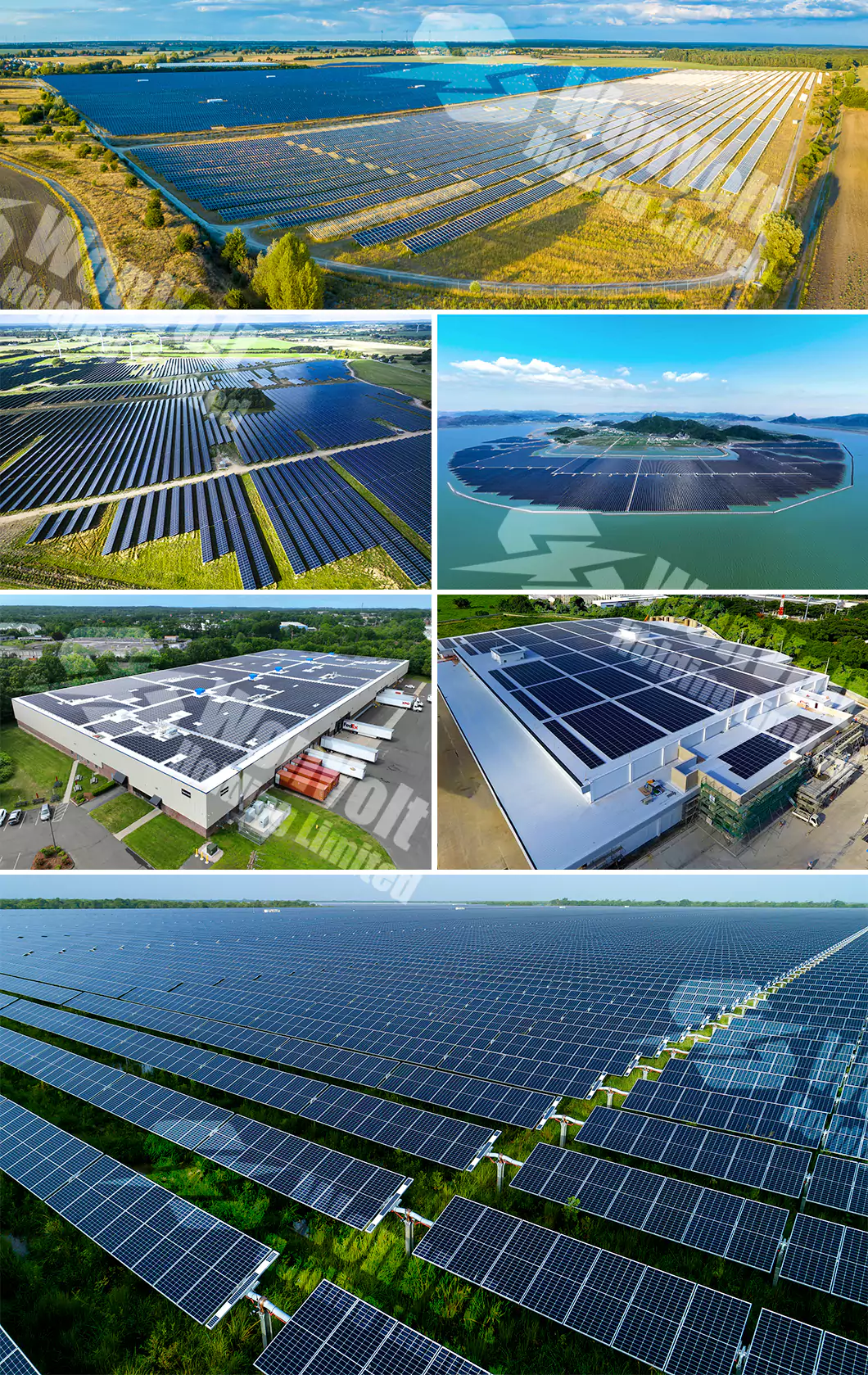

Successful Cases
| Cell Layout | 132[6×22] |

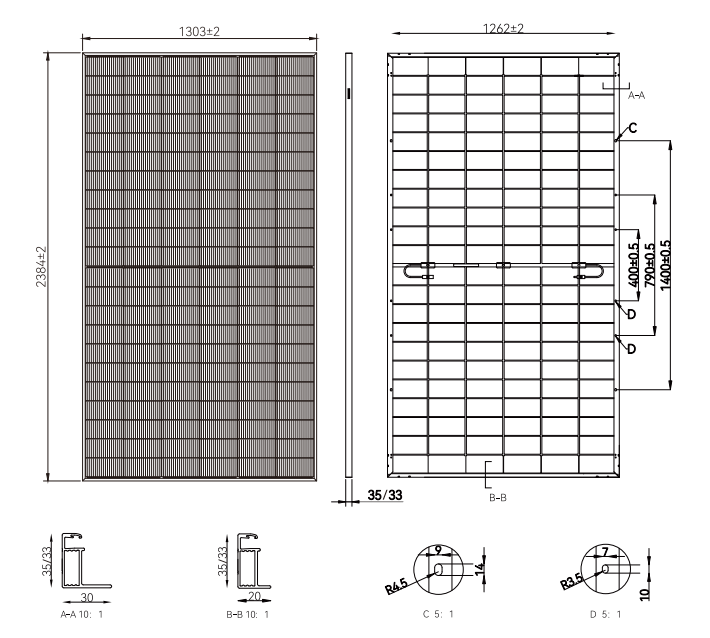

| Dimension | 2384±2×1303±2×35/33mm |
| Weight | 37.9kg |
| Glass | 2.0+2.0mm high transmittance, AR semi-tempered glass |
| Frame | Anodized aluminum alloy frame |
| Junction Box | IP68, 3 diodes |
| Output Cable | 4.0mm² +400mm, -200mm, or±1400mm |

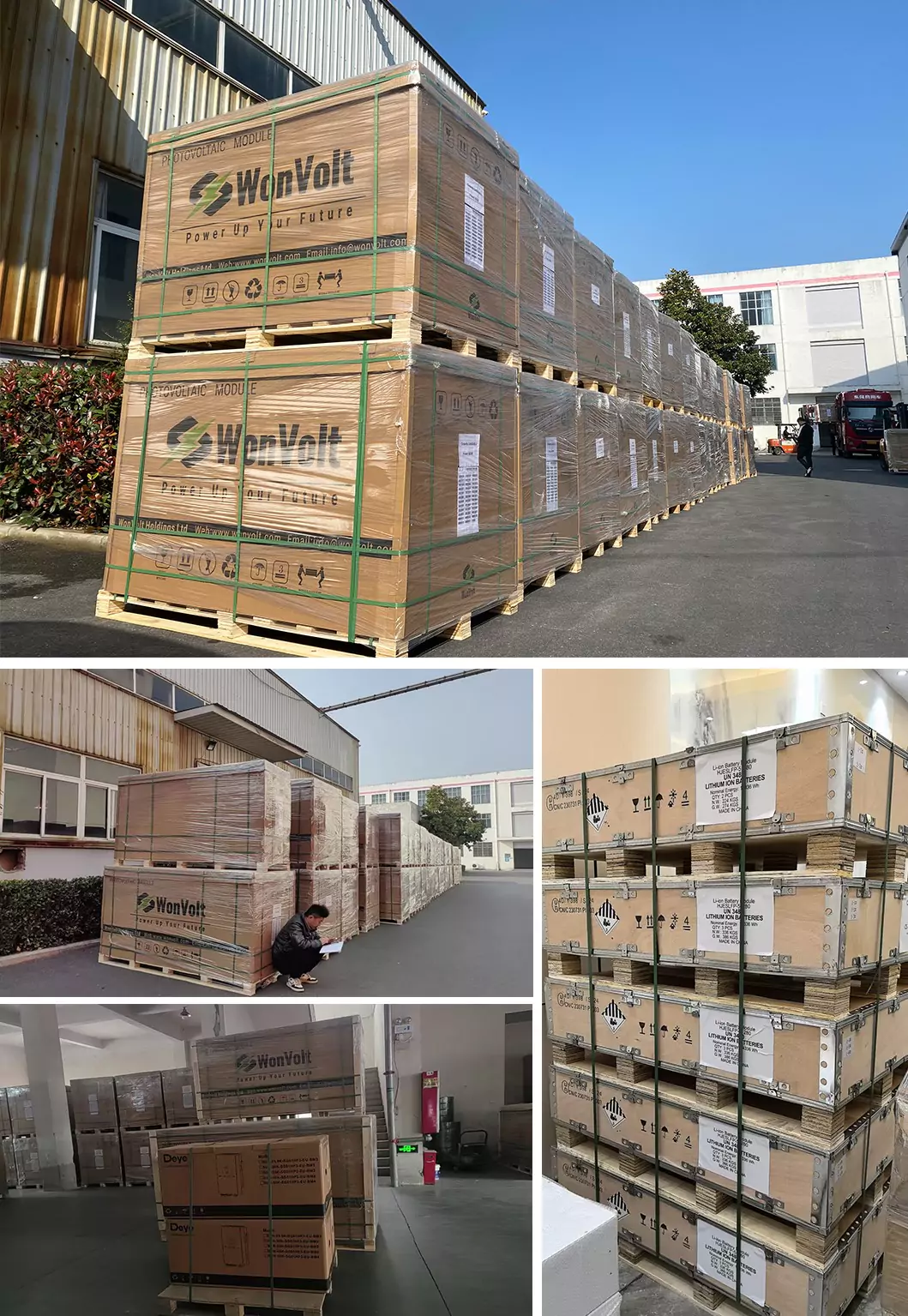

| Packaging | 31/33pcs per pallet, 558/594pcs per 40’HC |
| Module Type | WV-66KUN720-H12NS | WV-66KUN725-H12NS | WV-66KUN730-H12NS | WV-66KUN735-H12NS | WV-66KUN740-H12NS | |||||
| Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT |
| Maximum Power(Pmax/W) | 720 | 548 | 725 | 552 | 730 | 556 | 735 | 560 | 740 | 564 |
| Open Circuit Voltage(Voc/V) | 50.30 | 48.09 | 50.38 | 48.16 | 50.46 | 48.26 | 50.54 | 48.32 | 50.62 | 48.39 |
| Short Circuit Current(Isc/A) | 18.08 | 14.58 | 18.18 | 14.66 | 18.28 | 14.74 | 18.37 | 14.81 | 18.47 | 14.89 |
| Voltage at Maximum Power(Vmp/V) | 41.94 | 39.57 | 42.03 | 39.69 | 42.13 | 39.80 | 42.22 | 39.89 | 42.32 | 40.00 |
| Current at Maximum Power(Imp/A) | 17.17 | 13.85 | 17.25 | 13.91 | 17.33 | 13.97 | 17.41 | 14.04 | 17.49 | 14.10 |
| Module Efficiency(%) | 23.2 | 23.3 | 23.5 | 23.7 | 23.8 | |||||
| Front Side Maximum Static Loading | 5400Pa |
| Rear Side Maximum Static Loading | 2400Pa |
| Hailstone Test | 25mm Hailstone at the speed of 23m/s |
| Temperature Coefficient(Pmax) | -0.30%/℃ |
| Temperature Coefficient(Voc) | -0.25%/℃ |
| Temperature Coefficient (lsc) | +0.046%/℃ |
